Sharing energy

Explore how energy sharing and green solutions can save energy and connect communities.

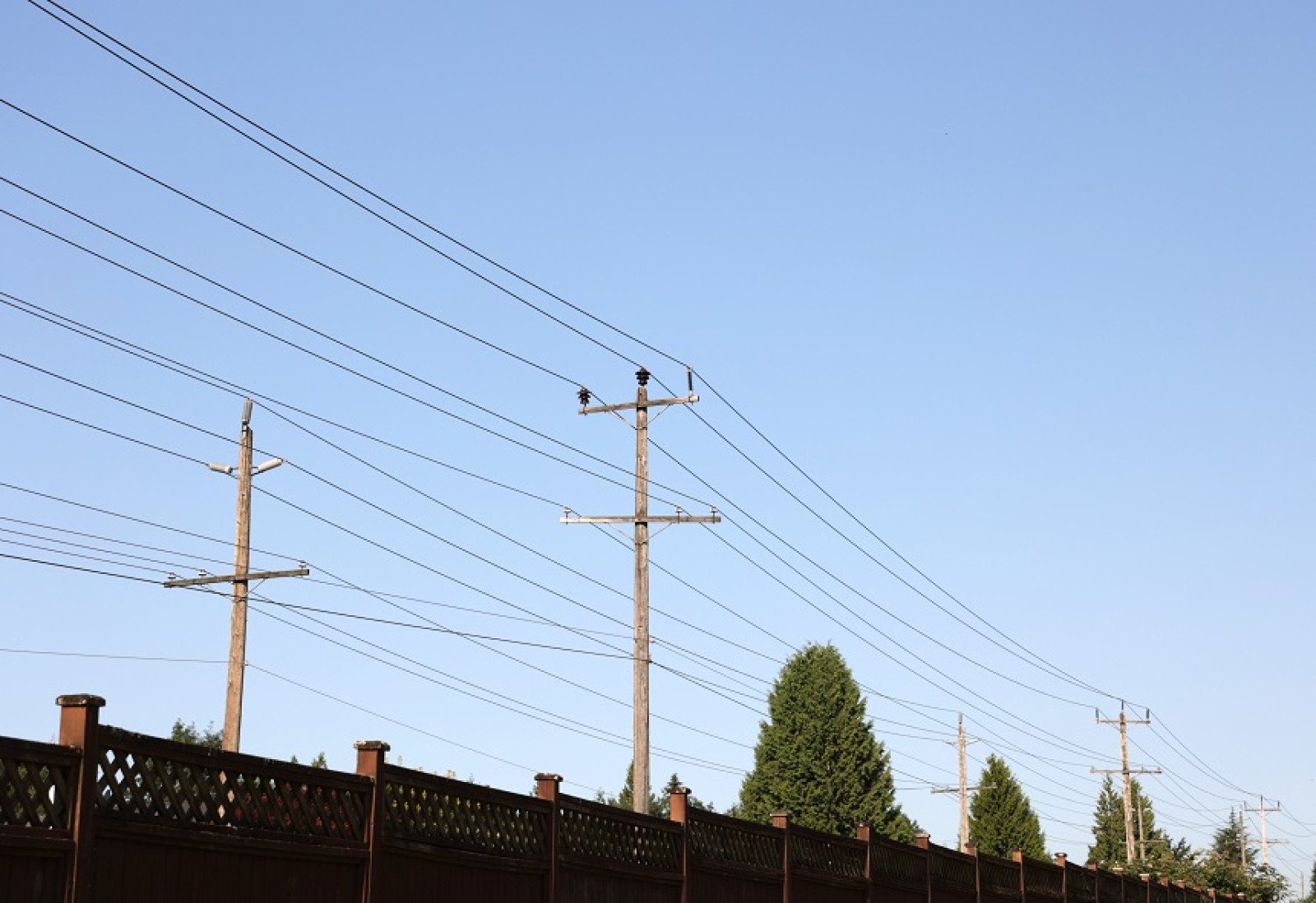

Activity Image
Grade
10
Duration
1.3 hours
Type
Game

Overview

Students investigate how sharing energy can build community energy resiliency and improve energy efficiency. We’ll play a trivia game to learn how sewer waste and data centres can provide ‘free’ heating and conserve energy. Students research and present a shared energy system.

Instructions

What you'll need

  • “Sharing energy” trivia
  • "Sharing energy" handout, one copy per student

  1. Start with a class discussion about energy grids and how we access energy here in B.C. and/or do the activity “Understanding grid systems”
  2. Have students consider how we would keep warm, for example, if there was no energy grid system. If there is no heating source, people would rely on clothing and blankets to keep warm. Some communities and people live ‘off-grid’ and generate their own renewable energy or use fossil fuels like diesel.
  3. Invite students to read the article about the Texas power failure and consider how vulnerable Texas was left as it was not connected to a national grid. Discuss how a grid system can improve stability for power generation by providing resilience and redundancy if one area goes down due to weather or other challenges.
  4. Introduce the concept of energy sharing where homes can generate their own source of renewable energy like solar or wind, but still be connected to the electrical grid. This ensures energy security as when there is no sun or wind the home can draw energy from the grid, and when there is excess energy being generated it can be sold back to the grid.
  5. Share with students the website about District energy infrastructure and discuss the concept whereby waste heating or cooling can be recovered from one system and used for another. One example in Vancouver uses sewage heat recovery to provide heating in the Southeast False Creek neighbourhood.
  6. Pull up the “Sharing energy” trivia game and have students individually or as a class explore different examples and ideas for energy sharing and efficiency.
  7. Using the "Sharing energy" handout, have students research and present an energy sharing system using one of the examples provided or by finding their own.

Modify or extend this activity

  • Read the CleanBC Roadmap to 2030 document and research the different approaches B.C. will take to reduce emissions and meet climate goals.
  • Conduct a research project into different district energy systems and identify ones that could be useful in your community.

Curriculum Fit

Science 10

Big ideas

  • Energy is conserved, and its transformation can affect living things and the environment

Content

  • Local and global impacts of energy transformations from technologies

Curricular competencies

Questioning and predicting
  • Demonstrate a sustained intellectual curiosity about a scientific topic or problem of personal interest
Communicating
  • Communicate scientific ideas, claims, information, and perhaps a suggested course of action, for a specific purpose and audience


Socials 10

Big ideas

  • The development of political institutions is influenced by economic, social, ideological, and geographic factors

Content

  • Environmental, political and economic policies: environmental issues including climate change and renewable energy

Curricular competencies

  • Use Social Studies inquiry processes and skills to ask questions; gather, interpret, and analyze ideas and data; and communicate findings and decisions


Technology Explorations 10

Big ideas

  • Social, ethical, and sustainability considerations impact design

Content

  • Alternate energy sources

Curricular competencies

Applied design - ideating
  • Critically analyze and prioritize competing factors to meet community needs for preferred futures

Teaching Notes

Distribution grid in B.C.

BC Hydro generates power by harnessing the power of moving or falling water to produce mechanical/electrical energy. BC Hydro generates over 43,000 gigawatt hours of electricity annually to supply more than 1.6 million residential, commercial and industrial customers. This power is delivered using an interconnected system of over 73,000 kilometres of transmission and distribution lines.

So how do we generate this power? The process begins before electricity even reaches customers. The steps to generating electricity from a dam and how it is transported are outlined below.

  1. Hydro dam: There is potential energy stored in a water reservoir behind a dam. It is converted to kinetic energy when the water starts flowing down the penstock, from the dam. This kinetic energy is used to turn a turbine.
  2. Generator: The falling water strikes a series of blades attached around a shaft which converts kinetic energy to mechanical energy and causes the turbine to rotate. The shaft is attached to a generator, so that when the turbine turns, the generator is driven. The generator converts the turbine's mechanical energy into electric energy.
  3. Step-up transformer: Voltage is the pressure that makes electricity flow. Generators usually produce electricity with a low voltage. In order for the transmission lines to carry the electricity efficiently over long distances, the low generator voltage is increased to a higher transmission voltage by a step-up transformer.
  4. Grid high voltage transmission lines: Grid transmission lines, usually supported by tall metal towers, carry high voltage electricity over long distances.
  5. Terminal station: Terminal stations control power flow on grid transmission lines and reduce the grid voltage to sub-transmission voltage.
  6. Sub-transmission lines: Sub-transmission lines supply power from terminal stations to large industrial customers or distribution substations.
  7. Customer use: Electric energy can be sold at transmission voltage to users of large amounts who own and operate their own substations. Most customers, however, are unable to accept energy at transmission voltage, and require that it be stepped down in a transformer.
  8. Distribution substation: A distribution substation is a system of transformers, meters, and control and protective devices. At a substation, transmission voltage is reduced to lower voltages for distribution to residential, commercial, and small and medium industrial customers.


Energy storage

Energy can be stored in a variety of ways, including: (excerpt from EPA electricity storage)

  • Pumped hydroelectric: Electricity is used to pump water up to a reservoir. When water is released from the reservoir, it flows down through a turbine to generate electricity.
  • Compressed air: Electricity is used to compress air at up to 1,000 pounds per square inch and store it, often in underground caverns. When electricity demand is high, the pressurized air is released to generate electricity through an expansion turbine generator.
  • Flywheels: Electricity is used to accelerate a flywheel (a type of rotor) through which the energy is conserved as kinetic rotational energy. When the energy is needed, the spinning force of the flywheel is used to turn a generator. Some flywheels use magnetic bearings, operate in a vacuum to reduce drag, and can attain rotational speeds up to 60,000 revolutions per minute.
  • Batteries: Similar to common rechargeable batteries, very large batteries can store electricity until it is needed. These systems can use lithium ion, lead acid, lithium iron or other battery technologies.
  • Thermal energy storage: Electricity can be used to produce thermal energy, which can be stored until it is needed. For example, electricity can be used to produce chilled water or ice during times of low demand and later used for cooling during periods of peak electricity consumption.

Learn more about the Tŝilhqot’in solar farm.

Learn more about the district energy systems and other local examples.


B.C. is powered by water

In B.C., we have a unique advantage. The province’s natural landscape has allowed us to generate and deliver clean, renewable power to B.C. residents for decades. And as we look to the future, BC Hydro has an ambitious goal to do more.


Our plan to electrify B.C.

BC Hydro will be instrumental in building a sustainable economy in B.C. We’ll continue to support conservation efforts, while also offering new programs and incentives to help British Columbians make the switch from fossil fuels to clean hydroelectricity to power their homes, businesses, and vehicles. We’ll also help to attract new energy-intensive industries to B.C. and offer programs to reduce the time and costs for new customers to get connected to our grid.

Assessment

  • Assess students’ understanding of how district energy systems can be useful in improving energy efficiency.
  • Assess students’ ability to articulate ways that sharing energy and recovering wasted heat could be used in building and community design.
  • Assess students’ critical thinking and communication in presenting their energy sharing system.

Downloads

Select the materials you require for this activity or download all

Sharing Energy Trivia

1.9 mb pdf
